EAP787

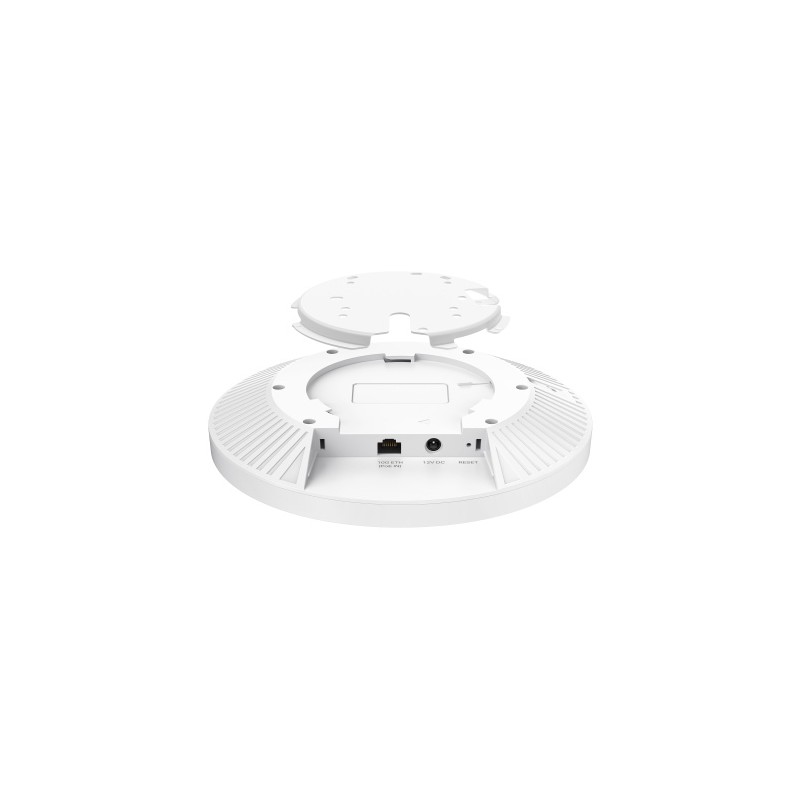

Omada 7 Max - BE15000 8-Stream Ceiling Mount Tri-Band Wi-Fi 7 Access Point
- Dedicated RF Scanning: Offers real-time spectrum monitoring and dynamic interference avoidance for robust wireless performance.§
- Maximized 6 GHz Coverage with AFC: Unlock stronger signals and extended 6 GHz range performance (AFC enabled via firmware update, planned for April, 2026).#
- Tri-Band 8-Stream Wi-Fi 7: 5765 Mbps on 6 GHz, 8648 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz.†
- 1× 10G Port: Ensures fast connectivity throughout the network
- Low Latency and Interference: 320MHz Bandwidth, Multi-Link Operation, Multi-RUs, and 4K-QAM ensure high performance for your network.‡
- Flexible Deployment and Easy Setup: Supports both 802.3bt PoE and DC power supply for flexible installation with Omada SDN for one-click setup.
- Advanced Features: Supports centralized management, Mesh, and Seamless Roaming.△
- More Capacity and Wider Coverage: Supports 510+ concurrent clients** and covers up to 2050 ft² (190 m²)* for reliable and extensive wireless connectivity.
|
HARDWARE FEATURES |
|
|
Interface |
1× 10G/2.5G Ethernet Port |
|
Button |
Reset |
|
Power Supply |
• 802.3bt/at PoE |
|
Max. Power Consumption |
• 29 W (For PoE); |
|
Dimensions ( W x D x H ) |
8.7 × 8.7 × 1.5 in (220 × 220 × 38.8 mm) |
|
Antenna |
• 2.4 GHz: 2× 4.0 dBi |
|
Bluetooth |
1 × 5 dBi (peak gain), Internal antenna module |
|
Mounting |
Ceiling / Wall / Junction Box Mounting (Kits Included) |
|
MANAGEMENT FEATURES |
|
|
Omada App |
Yes |
|
Centralized Management |
• Omada Central (Cloud-Based) |
|
Cloud Access |
Yes. Require the use of an Omada controller. |
|
Email Alerts |
Yes |
|
LED ON/OFF Control |
Yes |
|
Management MAC Access Control |
Yes |
|
SNMP |
v1, v2c, v3 |
|
System Logging Local/Remote Syslog |
Yes |
|
Web-based Management |
Yes |
|
WIRELESS FEATURES |
|
|
Coverage |
2050 ft² (190 m²)* |
|
Concurrent Clients |
510+** |
|
Wireless Standards |
IEEE 802.11 a/b/g/n/ac/ax/be |
|
Frequency |
6 GHz, 5 GHz, and 2.4 GHz |
|
Signal Rate |
688 Mbps (2.4 GHz) + 8648 Mbps (5 GHz) + 5765 Mbps (6 GHz)† |
|
Wireless Functions |
• 320 MHz Bandwidth‡ |
|
Wireless Security |
• Captive Portal Authentication△ |
|
Transmission Power |
4-25 dBm (2.4 GHz) |
|
OTHERS |
|
|
Certification |
• Wi-Fi Alliance: Wi-Fi 7 (R1), Wi-Fi 6 (R2), Wi-Fi 6E, WPA3-R3, WPA3-Suite B, Enhanced Open Security |
|
Package Content |
• EAP787 |
|
Environment |
• Operating Temperature: 0 °C–40 °C (32 °F–104 °F); |
